Single Spindle Automatic Lathes (Traub Machines)

Single Spindle Automatic Lathes

Abhijat automats are highly precision, robust and cost effective machines. They are most suitable for mass production of precision parts. These machines find application in Automobile, Electronic, Electrical, Textile, Bicycles, Diesel Engines, and General Engineering Industries for economic mass production of turned Components. This machine is available in various models.

Abhijat Automats are highly precise, robust and cost effective machines. These Machines find application in Automobile, Electronics, Bicycles, Diesel Engines, Radioes, Electrical, Textile and General Engineering Industries, for economic mass production of turned Components.

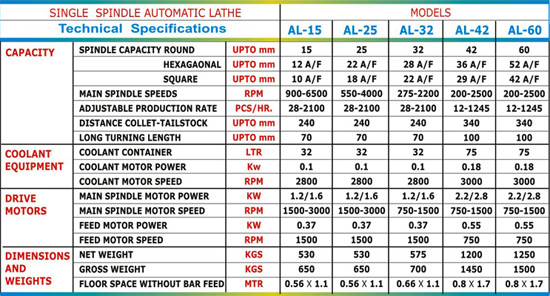

Models :

AL-15
AL-25
AL-32
AL-42
AL-60

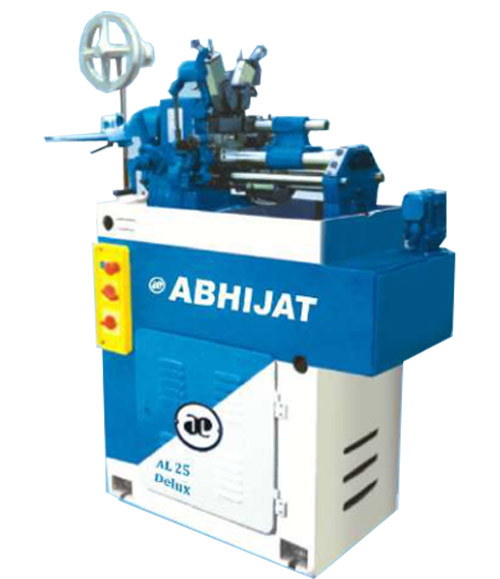

Deluxe Models :

Deluxe AL-15
Deluxe AL-25
Deluxe AL-32

Features of Deluxe Models :

Heat Treated Slides
Swing Stop with Micro Adjustable Thimble
Needle Roller Bearings for Cam Shafts
Silent Bar Feed
Duel Colour

E Catalagues :

Single Spindle Automatic Lathe

e-cat

For Video Tour :

you-tube

Single Spindle Automatic Lathes (Traub Machines), Automatic Lathes

request-quote

Machine Construction

Pedestal : The pedestal (machine base) is a rigid fabricated Construction, properly stress relieved to ensure Precision & vibration-free machining of Components with Superior finish.

Spindle : The spindle is manufactured from alloy steel, accurately machined, carefully hardened & precision ground ,including threads. The Spindle is mounted in Precision Imported Bearings in the front & precision deep groove ball bearing in the rear.

Standard Equipments : • Front & Rear Cross-Slide • Tail Stock • Bar Stop • Drum cam • Electrical Drive Motors • Front & Rear Sheet Metal Splash Guards • Electrical Coolant Pump • Bar Feed Attachment • Hand Crank • Set of Change Gears • Tool kit

Extra Accessories

Piece Counter

Long Turning Attachment.

Swing Stopper on V/S

Swing Support

Electric Shut-off

Double Drilling Attachment

Threading Attachment

Part Catcher

Centring and stopping attchemnt

DVS swing stop

Four position turret

Synchronized Drive Assembly.

Abhijat Make Single Spindle Automatic Lath Machine with Long Turning Operation AL 25 AL 32

Abhijat Make Single Spindle Automatic Lathe Machine Cross Drilling AL 25 AL 32

Abhijat make Single Spindle Automatic Lathe Machine
AL 42

Abhijat make Single Spindle Automatic Lathe AL-42 With Through Coolant from Tail Stock

Abhijat make Single Spindle Automatic Lathe AL 25 With Double Drilling Attachment

Abhijat make Single Spindle Automatic Lathe with Synchronize drive

Abhijat Make Automatic Lathe Machine AL-25 Auto loading
